Fire-Resistant Cables
Polyolefin-Insulated Fire-Service Connection Flexible Wire
Polyolefin-Insulated Fire-Service Connection Flexible Wire with a 2 × 0.5 mm² to 2 × 6 mm² specification range.
Overview
Polyolefin-Insulated Fire-Service Connection Flexible Wire. Specification range: 2 × 0.5 mm² to 2 × 6 mm².
- Core Range
- 2 × 0.5 mm² to 2 × 6 mm²
- Rated Voltage

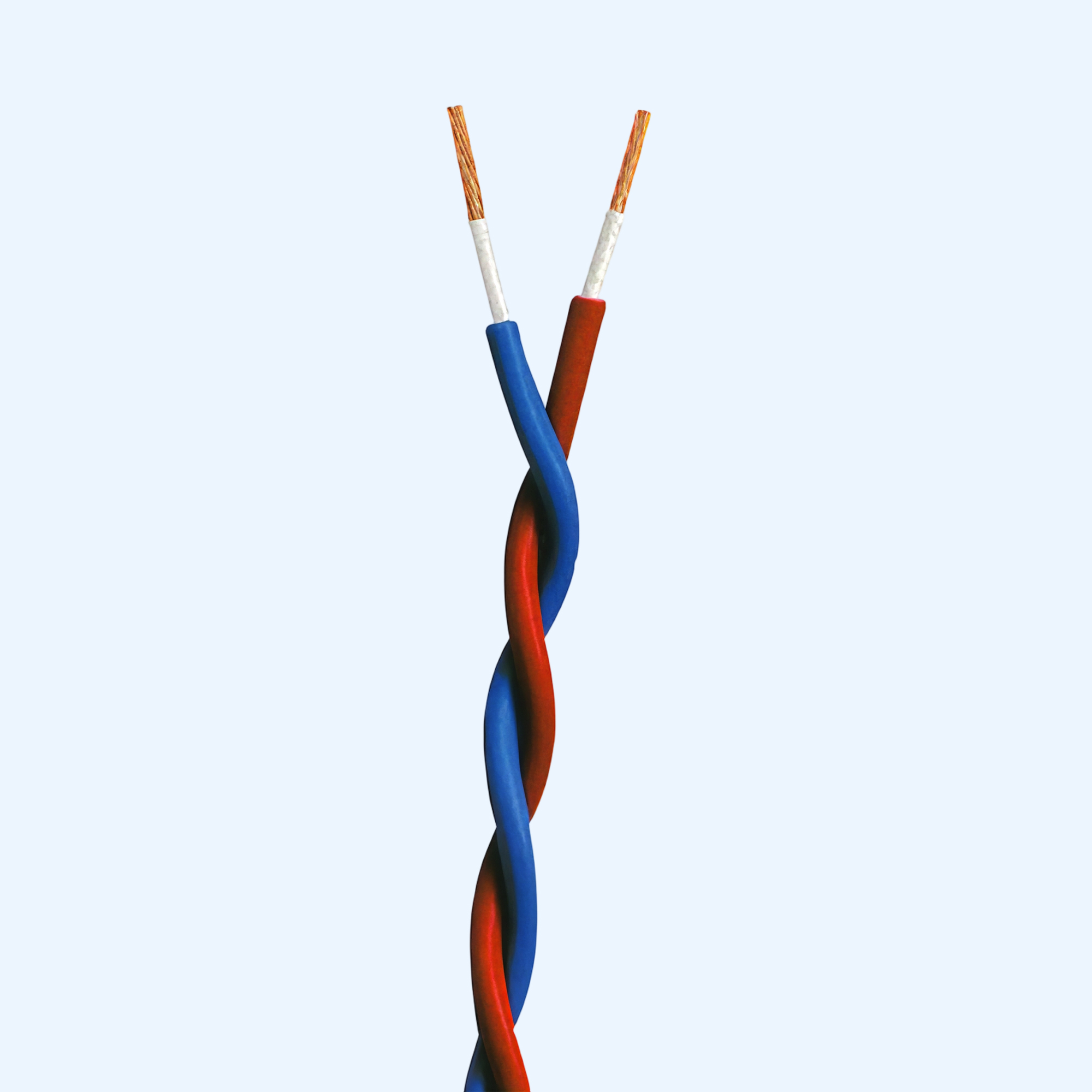

Customer Product Photos
Polyolefin-Insulated Fire-Service Connection Flexible Wire Product Gallery
Specification Matrix
Technical Specifications
| 2 × 4 mm² | Wire 0.16 mm; insulation 0.8 mm; OD max 9.5/11.1 mm; conductor resistance 4.95/5.09 Ω; insulation resistance 0.68 MΩ·km |
|---|---|
| 2 × 6 mm² | Wire 0.21 mm; insulation 1.0 mm; OD max 11.6/13.2 mm; conductor resistance 3.30/3.39 Ω; insulation resistance 0.68 MΩ·km |
| 2 × 0.5 mm² | Wire 0.16 mm; insulation 0.8 mm; OD max 6.0/7.6 mm; conductor resistance 39.0 Ω (bare copper) or 40.1 Ω (tinned copper); insulation resistance 1.44 MΩ·km |
| 2 × 1.0 mm² | Wire 0.16 mm; insulation 0.8 mm; OD max 6.6/8.2 mm; conductor resistance 19.5/20.0 Ω; insulation resistance 1.14 MΩ·km |
| 2 × 1.5 mm² | Wire 0.16 mm; insulation 0.8 mm; OD max 7.2/8.8 mm; conductor resistance 13.3/13.7 Ω; insulation resistance 0.99 MΩ·km |
| 2 × 2.5 mm² | Wire 0.16 mm; insulation 0.8 mm; OD max 8.2/9.8 mm; conductor resistance 7.98/8.21 Ω; insulation resistance 0.83 MΩ·km |
| 2 × 0.75 mm² | Wire 0.16 mm; insulation 0.8 mm; OD max 6.2/7.8 mm; conductor resistance 26.0/26.7 Ω; insulation resistance 1.27 MΩ·km |
| Specification range | 2 × 0.5 mm² to 2 × 6 mm² |
Applications
Where This Cable Is Used
- Construction
- Industrial
Certification
Certification Facts
Full certification documentation is available on request during the quotation process. See our Quality & Certificates page for scope details.
