Product Series · 7 SKUs
Flame-Retardant and Fire-Resistant Wires & Cables
Choose a model below to compare its construction, voltage rating, conductor range, and intended application.
Select a model
7 SKUs in One Product Series
The product family stays consistent while conductor flexibility, shielding, core range, and rated voltage vary by model.

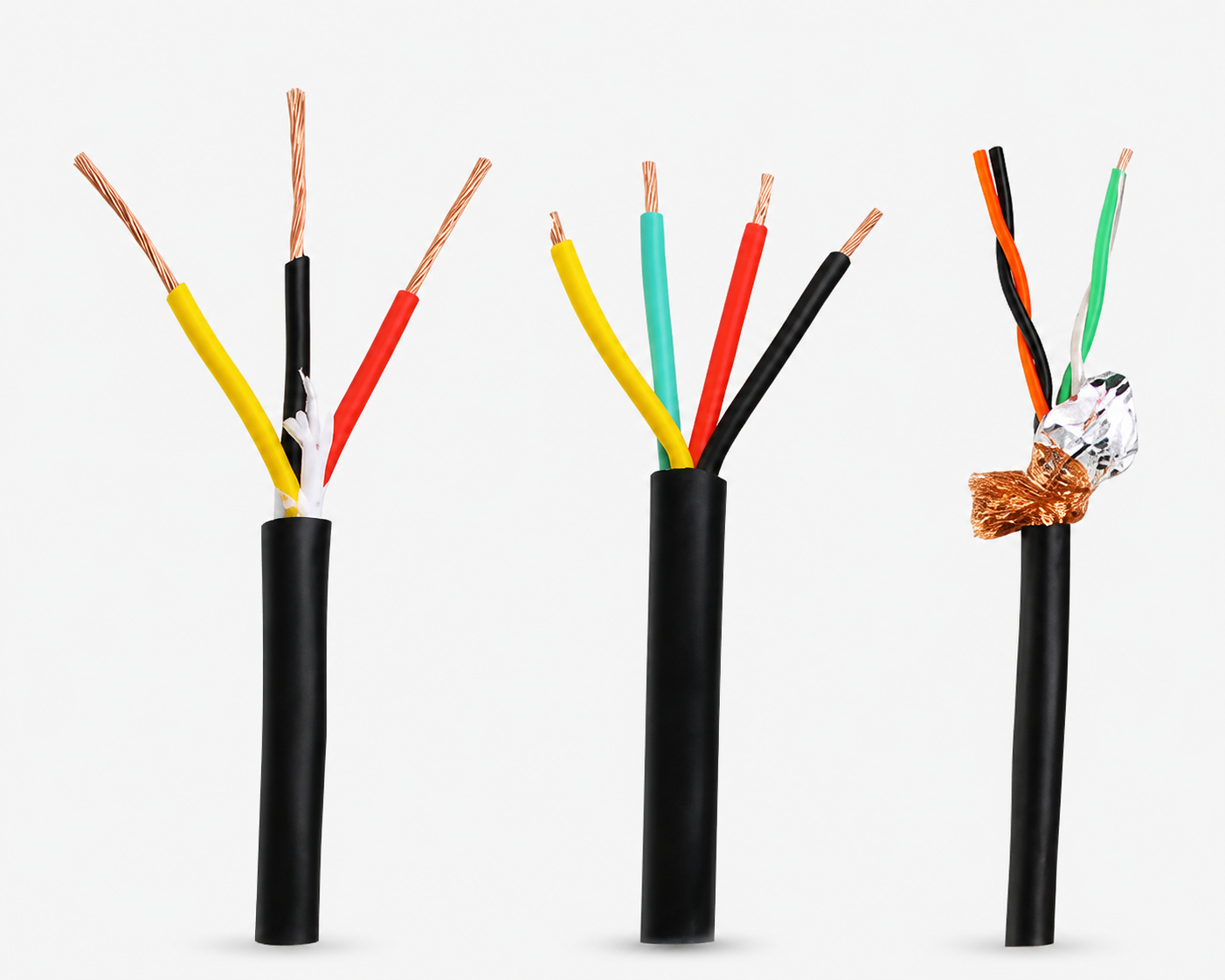

ZAN-RYY Flame-Retardant Class A Fire-Resistant Flexible Wire
The ZAN-RYY flexible wire combines cross-linked polyethylene insulation with a polyolefin sheath and a flame-retardant class A, fire-resistant design. It is built for power, lighting, and emergency circuits in buildings and industrial installations where circuit integrity must be maintained under fire conditions.
- Rated voltage
- 300/300 V · 300/500 V
- Size / core range
- 0.5–2.5 mm², 2–5 cores
Customer Product Photos
ZAN-RYY Product Gallery
ZAN-RYY specification
Technical Details
| Model | ZAN-RYY |
|---|---|
| Sheath | Polyolefin |
| Insulation | Cross-linked polyethylene (XLPE) |
| Performance | Flame-retardant class A, fire-resistant |
| Rated voltage | 300/300 V · 300/500 V |
| Specification range | 0.5–0.75 mm² (2–3 cores) at 300/300 V; 0.75–2.5 mm² (2–5 cores) at 300/500 V |
Selection context
Applications & Documentation
- Construction
- Industrial
Available documentation
Applicable certificates and technical documentation can be supplied during specification review.
