Connection Flexible Cable
Connection Flexible Cable with a 2 × 0.5 mm² to 3 × 0.75 mm² specification range.
Overview
Connection Flexible Cable. Specification range: 2 × 0.5 mm² to 3 × 0.75 mm².
- Core Range
- 2 × 0.5 mm² to 3 × 0.75 mm²
- Rated Voltage
Customer Product Photos

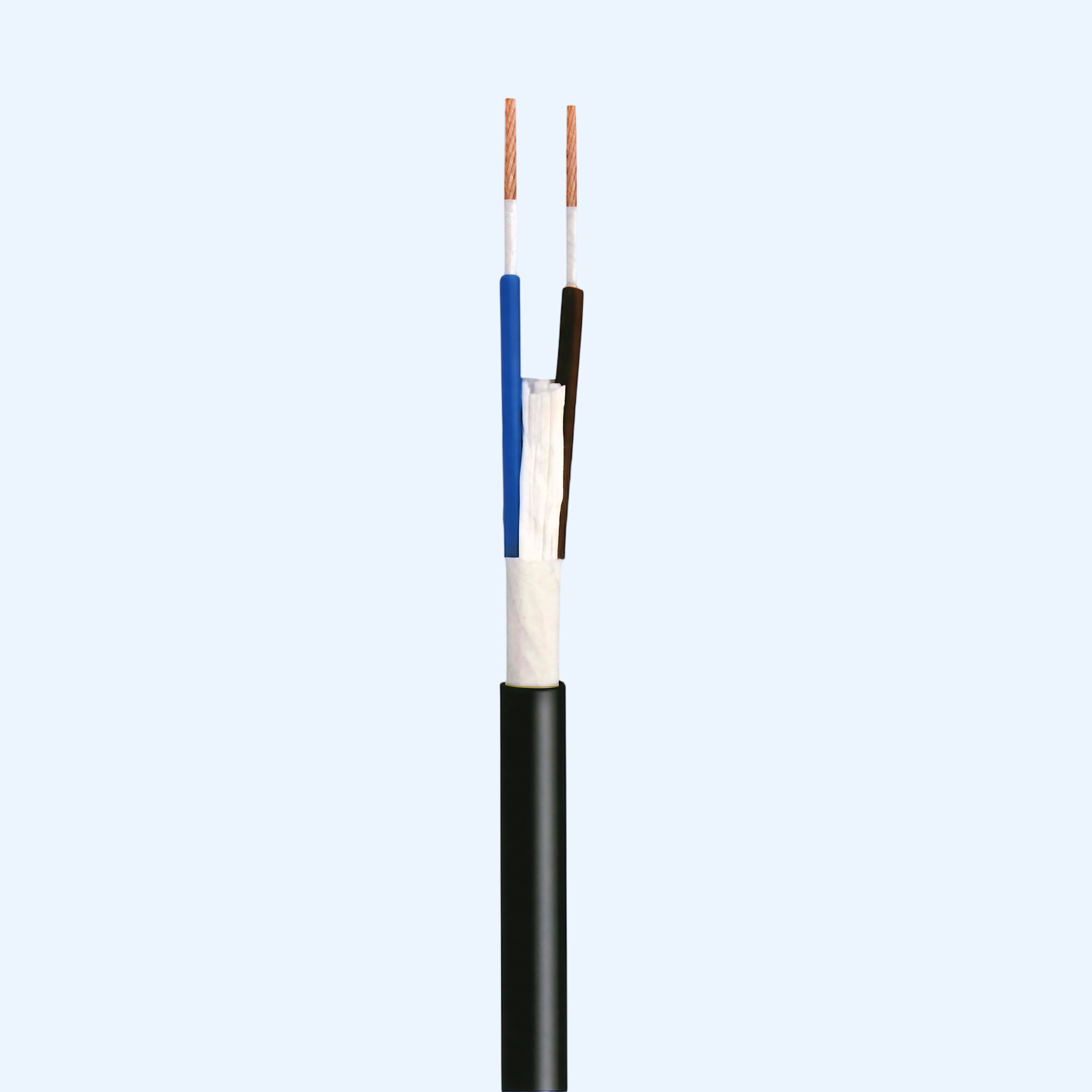

Connection Flexible Cable Product Gallery
Specification Matrix
Technical Specifications
| 2 × 0.5 mm² | Wire 0.21 mm; insulation 0.5 mm; sheath 0.6 mm; OD 4.6–5.6 mm without fire layer or 5.4–6.4 mm with fire layer; conductor resistance 39.0/40.1 Ω; insulation resistance 1.05 MΩ·km |
|---|---|
| 3 × 0.5 mm² | Wire 0.21 mm; insulation 0.5 mm; sheath 0.6 mm; OD 4.9–6.3 mm without fire layer or 6.0–7.4 mm with fire layer; conductor resistance 39.0/40.1 Ω; insulation resistance 1.05 MΩ·km |
| 2 × 0.75 mm² | Wire 0.21 mm; insulation 0.5 mm; sheath 0.6 mm; OD 4.9–6.3 mm without fire layer or 5.7–7.1 mm with fire layer; conductor resistance 26.0/26.7 Ω; insulation resistance 0.90 MΩ·km |
| 3 × 0.75 mm² | Wire 0.21 mm; insulation 0.5 mm; sheath 0.6 mm; OD 5.2–6.7 mm without fire layer or 6.3–7.8 mm with fire layer; conductor resistance 26.0/26.7 Ω; insulation resistance 0.90 MΩ·km |
| Specification range | 2 × 0.5 mm² to 3 × 0.75 mm² |
Applications
Where This Cable Is Used
- Construction
- Industrial
Certification
Certification Facts
Full certification documentation is available on request during the quotation process. See our Quality & Certificates page for scope details.
